Magnetic Field of a Bar Magnet. DongJoon 2018-01-05 Magnetism Simulation. Magnetic field around magnet The space where the magnetic force of the magnet acts is called a ‘magnetic field.’ The direction of the magnetic field is determined in the direction indicated by Read more.

What is EMS?

• A field meter is also provided in the software, with the help of which you can check the intensity of magnetic field at different points. This free Physics simulation lets you learn the working principle of a magnetic compass. Magnetic simulations became popular with advancing of personal computing since 1960-s, and currently most of the.
• 3d Magnetic Field Simulation Software Free. 0 Comments EMS is a magnet and electromagnetic software and simulation tool that computes 3D magnetic and electric field and flux, electric potential, voltage, current, magnetic force, electric force, torque, eddy current and losses, skin effect, proximity effect, and electromagnetic.
• EMS is a magnet and electromagnetic software and simulation tool that computes both 2D and 3D magnetic and electric field and flux, electric potential, voltage, current, magnetic force, electric force, torque, eddy current and losses, skin effect, proximity effect, and electromagnetic induction. AnyLogic PLE is a free simulation tool for the.

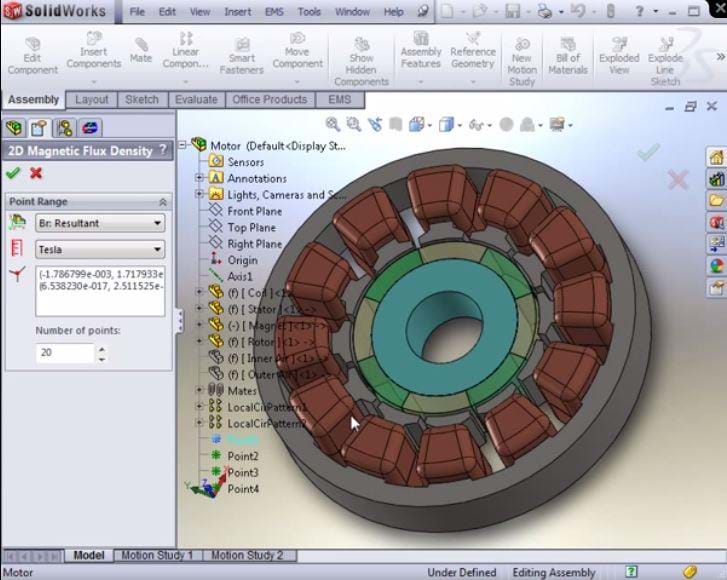

EMS is a 3D electromagnetic field simulator software suite, based on the powerful finite element method. Currently, it is the only electromagnetic Add-in available to SOLIDWORKS users. EMS is Gold Certified by SolidWorks® and targets four main areas: electromechanical, electromagnetic, power electronics, and electromagnetic behavior. This makes it ideal for motor development and testing, generator projects, metal detector design, Eddy current simulation, transformer simulation, induction heating modeling, magnetizing and much more.

Electrostatic Analysis

Electrostatic is the branch of science that deals with the phenomena arising from stationary and/or slow-moving electric charges. Electrostatic approximation rests on the assumption that the electric field is irrotational, i.e. the curl of the electric field is null. From Faraday’s law, this assumption implies the absence or near-absence of time-varying magnetic fields, i.e. the derivative of the magnetic field with respect to time is also null. In other words, electrostatics does not require the absence of magnetic fields or electric currents. Rather, if magnetic fields or electric currents do exist, they must not change with time, or in the worst-case, they must change with time only very slowly. In some problems, both electrostatics and magnetostatics may be required for accurate predictions, but the coupling between the two can still be ignored.

Conduction Analysis

Electric Conduction is, in essence, based on the electrostatic approximation. Unlike the Electrostatic analysis which deals with insulators and electric conductors, the Electric Conduction deals with only conducting media which can sustain a current flow.

Magnetostatic Analysis

Magnetic Field Line Simulator

Magnetostatics is the study of static magnetic fields.In electrostatics, the charges are stationary, whereas here, the currents are steady or dc(direct current). As it turns out magnetostatics is a good approximation even when the currents are not static as long as the currents do not alternate rapidly.Furthermore, Maxwell’s displacement current that couples the electric and magnetic fields is assumed to be null.

AC Magnetic

AC, or alternating current, Magnetic, is the study of magnetic fields due to alternating, or time harmonic, currents. Similar to Magnetostatic, Maxwell’s displacement current that couples the electric and magnetic fields is assumed to be null.

Transient Magnetic

Transient Magnetic, is the study of magnetic fields due to time varying currents, typically caused by surges in currents.Similar to Magnetostatic and AC Magnetic, Maxwell’s displacement current that couples the electric and magnetic fields is assumed to be null.

Additional Resources

Take Advantage of GoEngineer’s Extensive Knowledge Base and Resources

3d Magnetic Field Simulator Free Download

3d Magnetic Field Simulator Free Online

Today I’ve just been playing with my software to render this 3D animation of the magnetic field generated by a Helmholtz coil. The objective was to observe how the magnetic homogeneity varies with respect to the distance between coils.

3d Magnetic Field Simulator Free

As you can see, we find the maximum homogeneity when the distance between coils equals the radius (70mm). The total central magnetic field is also decreasing as the coils spread apart. In each of the 300 simulations to generate this animation, the central magnetic field is calculated and plotted to the left graph, and then only the 3D vectors fitting the 100ppm volume are shown. The homogeneity is also plotted below the central magnetic field graph, and the maximum variability shown in the right color scale in nT.

Magnetic Force Simulator

Enjoy!
